Researching RDCMan
by ogmini
Going back many years, I’ve used RDCMan or Remote Desktop Connection Manager extensively as a Systems Administrator. The price was right ($free) and it had all the features I needed to easily be able to remote into multiple servers. It is now a part of Sysinternals and up to version 3.1 as of this post. This looks like an interesting application to research from a forensic investigation standpoint. What artifacts does it leave behind and what can be gleaned from its configuration files.
So far, I have found four artifacts:
*.rdg files
Location: Anywhere (Default is My Documents)
Format: XML
These files are XML files and store all the information related to remote desktop groups in RDCMan. I will provide more details in a later post. An encrypted password can be stored in these files. There are two options for encryption using CryptProtectData or an x509 Certificate. CryptProtectData is the default setting.

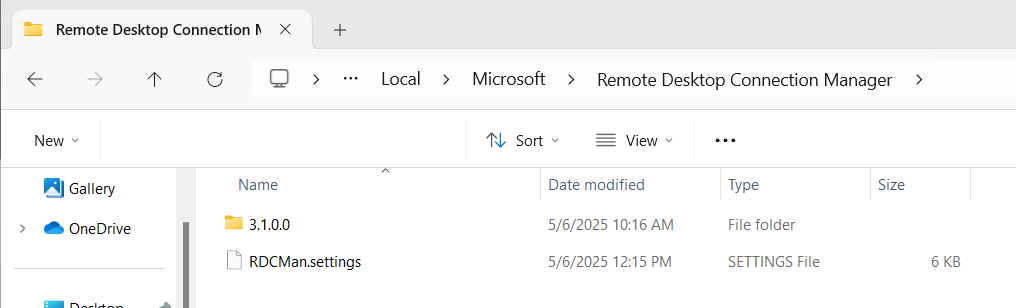

Version Folders
Location: %localappdata%\Microsoft\Remote Desktop Connection Manager
Format: Folder Names
From initial glance, it appears that RDCMan will create seemingly empty folders tied to the version of RDCMan being run.
CORRECTION - The folder that is created is for the version of RDCMan that was launched without a RDCMan.settings file previously existing. This is an interesting distinction.

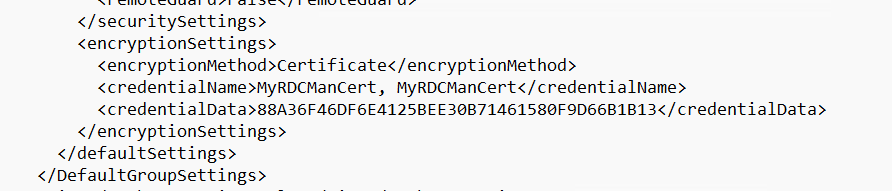

RDCMan.settings file
Location: %localappdata%\Microsoft\Remote Desktop Connection Manager
Format: XML
This is another XML file that stores global settings for RDCMan. This includes the encryption option for how passwords are stored. Knowing which encryption is being used gives the option to identify the certificate in use and possibly export it.

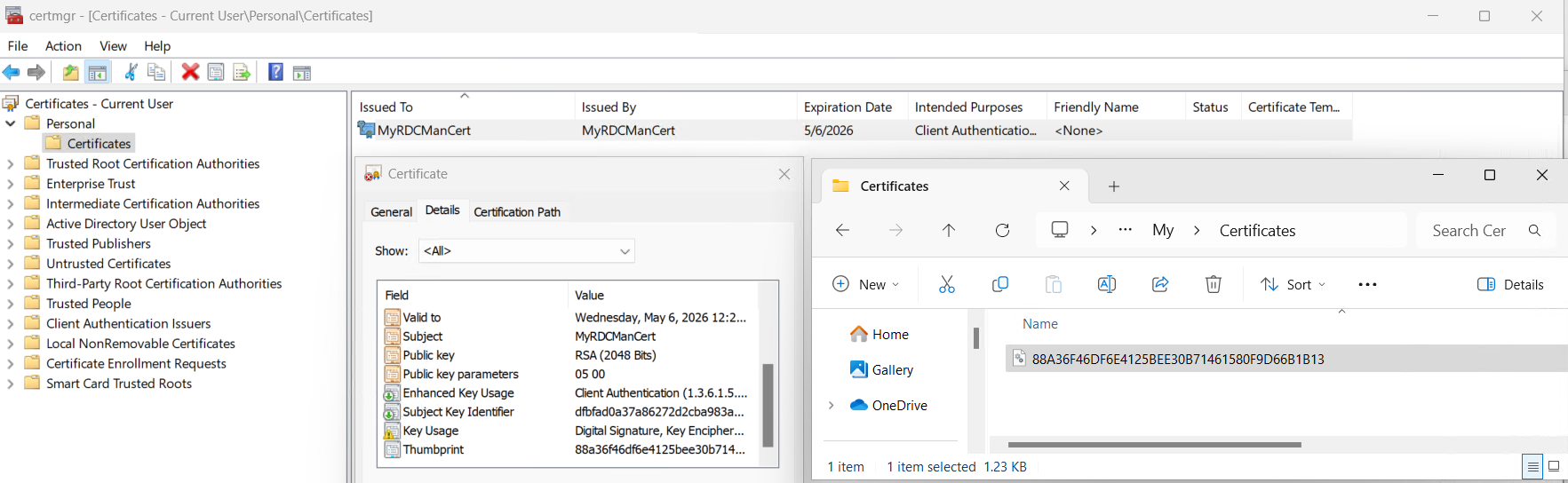

Personal Certificate
Location: %appdata%\Microsoft\SystemCertificates\My\Certificates
The RDCMan documentation does a much better job at explaining this file and its importance. https://learn.microsoft.com/en-us/sysinternals/downloads/rdcman#encryption-settings. If you have the ability, exporting the certificate would be a good idea. Something to explore is the possiblity of retrieving the cleartext password.
