6 March 2026

Magnet Virtual Summit 2026 CTF - AAR "Welcome Home"

by ogmini

Previous Post


This year I’m going to writeup AARs for the challenges that I solved differently from Hexordia or felt needed to be expanded upon due to my approach or thinking.

Welcome Home

Title: Welcome Home
Description: What port was the host directed through for a sign-in?

Thoughts/Hints/Background

  • Wifi Network Portal?
  • Possibly home network?

Solution

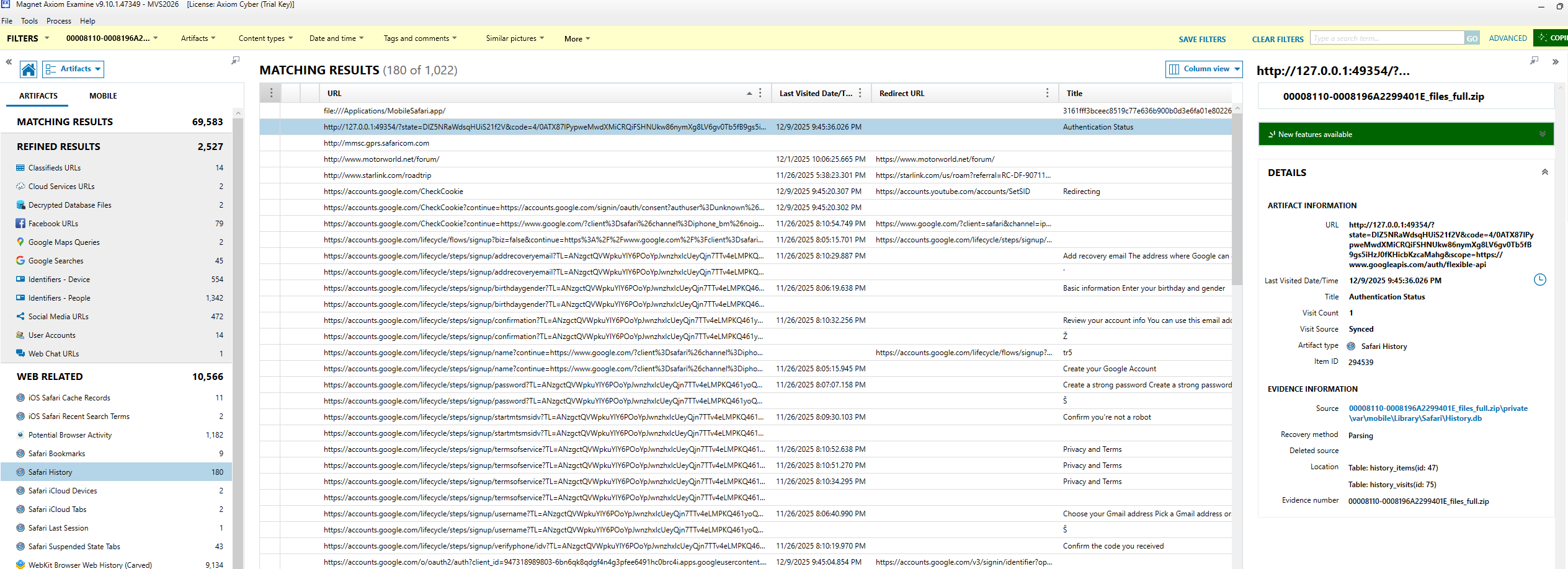

Let us check browser history for any interesting URLs with a port specified. We can look both in iLEAPP and Magnet Axiom where we find a hit for http://127.0.0.1:49354/?state=DlZ5NRaWdsqHUiS21f2V&code=4/0ATX87lPypweMwdXMiCRQiFSHNUkw86nymXg8LV6gv 0Tb5fB9gs5iHzJ0fKHicbKzcaMahg&scope=https://www.googleapis.com/auth/flexible-api. There is an obvious port of 49354 after the IP of 127.0.0.1.



Answer: 49354

Takeaways

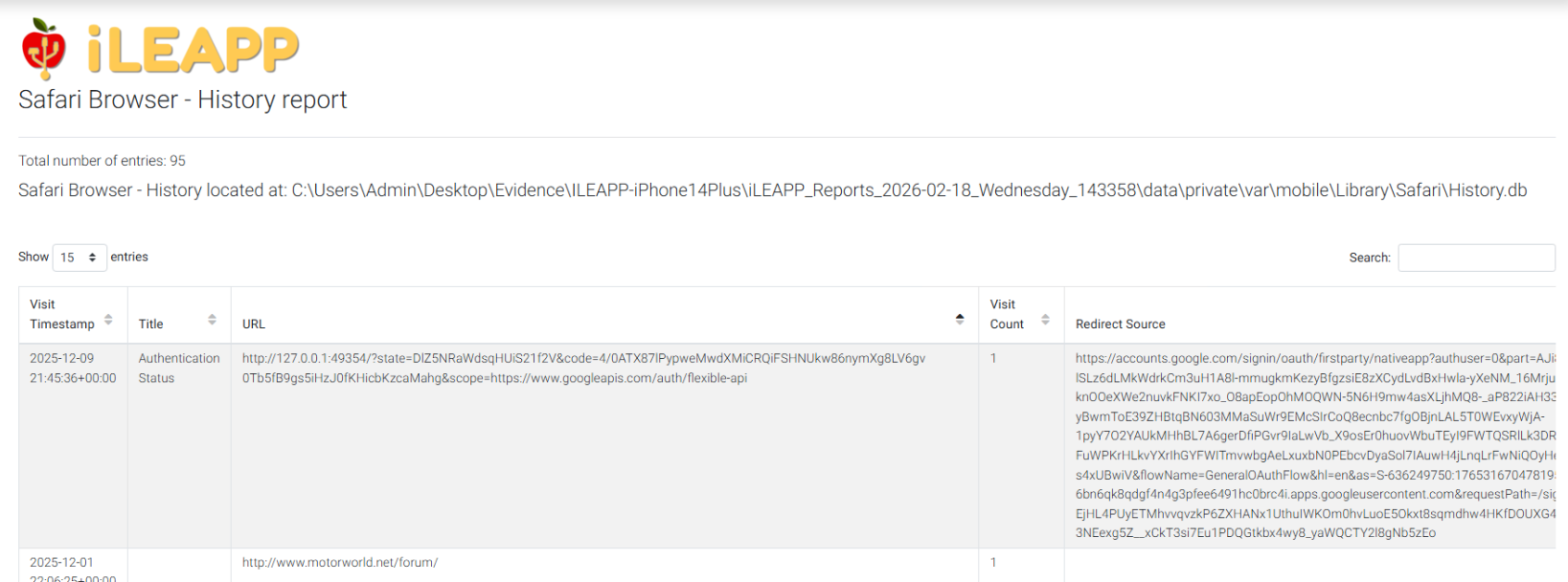

Interestingly, the iLEAPP plugin from Kevin Pagano reports the Redirect Source from the database while Magnet Axiom doesn’t show this or at least not by default. I’d like to get confirmation; but it looks like the individual opened the Google Drive application on their iPhone which utilized Google OAuth 2.0 authorization. I’m intrigued to know if that is correct…

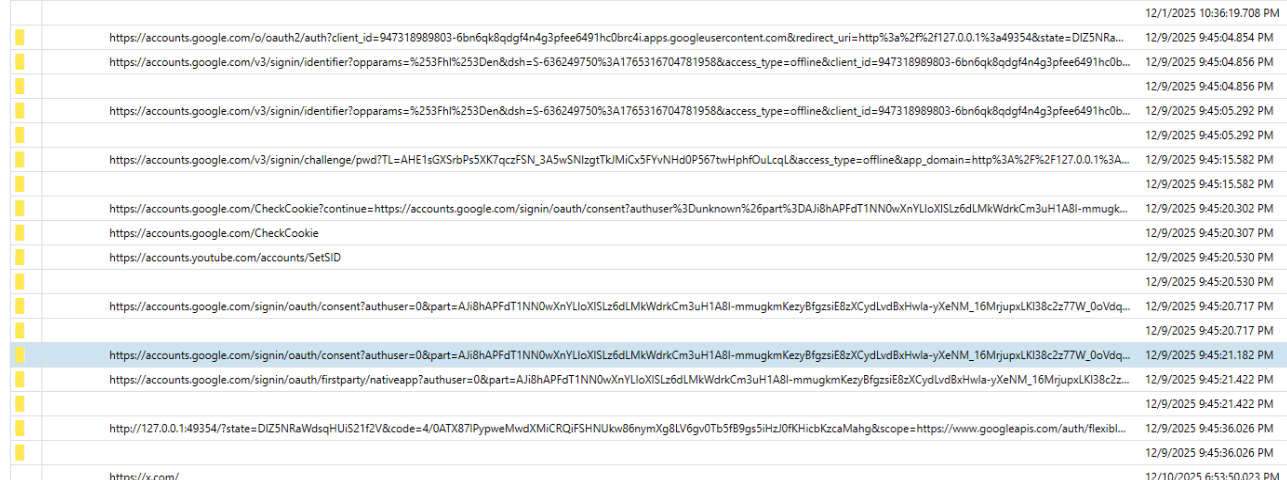

OAuth 2.0 flow seen in Safari History:


URLs from the above screenshot if you’d like to throw them all into unfurl

  1. https://accounts.google.com/o/oauth2/auth?client_id=947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com&redirect_uri=http%3a%2f%2f127.0.0.1%3a49354&state=DlZ5NRaWdsqHUiS21f2V&scope=https%3a%2f%2fwww.googleapis.com%2fauth%2fflexible-api&response_type=code&prompt=consent&access_type=offline&hl=en
  2. https://accounts.google.com/v3/signin/identifier?opparams=%253Fhl%253Den&dsh=S-636249750%3A1765316704781958&access_type=offline&client_id=947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com&hl=en&o2v=1&prompt=consent&redirect_uri=http%3A%2F%2F127.0.0.1%3A49354&response_type=code&scope=https%3A%2F%2Fwww.googleapis.com%2Fauth%2Fflexible-api&service=lso&state=DlZ5NRaWdsqHUiS21f2V&flowName=GeneralOAuthFlow&continue=https%3A%2F%2Faccounts.google.com%2Fsignin%2Foauth%2Fconsent%3Fauthuser%3Dunknown%26part%3DAJi8hAPFdT1NN0wXnYLIoXlSLz6dLMkWdrkCm3uH1A8l-mmugkmKezyBfgzsiE8zXCydLvdBxHwla-yXeNM_16MrjupxLKl38c2z77W_0oVdqPHq9Q02PYByV9knOOeXWe2nuvkFNKI7xo_O8apEopOhMOQWN-5N6H9mw4asXLjhMQ8-_aP822iAH33-yBwmToE39ZHBtqBN603MMaSuWr9EMcSIrCoQ8ecnbc7fgOBjnLAL5T0WEvxyWjA-1pyY7O2YAUkMHhBL7A6gerDfiPGvr9IaLwVb_X9osEr0huovWbuTEyI9FWTQSRlLk3DRemddIgizTXdiVM32FTSbyvU7HpJz1L6UFuWPKrHLkvYXrIhGYFWITmvwbgAeLxuxbN0PEbcvDyaSol7IAuwH4jLnqLrFwNiQOyHeOXVEgGhnu4uhw0VSAO1RiUzW2HoClHF7s4xUBwiV%26flowName%3DGeneralOAuthFlow%26hl%3Den%26as%3DS-636249750%253A1765316704781958%26client_id%3D947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com%26requestPath%3D%252Fsignin%252Foauth%252Fconsent%23&app_domain=http%3A%2F%2F127.0.0.1%3A49354&rart=ANgoxccha1Z0OMQinNG2yWgBz3TdLntfNEb93zJaeD_m8LCF8bwb-O3rGx0Kk38qz70aUdfyhXNf-PdeSm-f0UGAhX5zexwpiR247gvWp9SRz2jAmCrDgUY
  3. https://accounts.google.com/v3/signin/identifier?opparams=%253Fhl%253Den&dsh=S-636249750%3A1765316704781958&access_type=offline&client_id=947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com&hl=en&o2v=1&prompt=consent&redirect_uri=http%3A%2F%2F127.0.0.1%3A49354&response_type=code&scope=https%3A%2F%2Fwww.googleapis.com%2Fauth%2Fflexible-api&service=lso&state=DlZ5NRaWdsqHUiS21f2V&flowName=GeneralOAuthFlow&continue=https%3A%2F%2Faccounts.google.com%2Fsignin%2Foauth%2Fconsent%3Fauthuser%3Dunknown%26part%3DAJi8hAPFdT1NN0wXnYLIoXlSLz6dLMkWdrkCm3uH1A8l-mmugkmKezyBfgzsiE8zXCydLvdBxHwla-yXeNM_16MrjupxLKl38c2z77W_0oVdqPHq9Q02PYByV9knOOeXWe2nuvkFNKI7xo_O8apEopOhMOQWN-5N6H9mw4asXLjhMQ8-_aP822iAH33-yBwmToE39ZHBtqBN603MMaSuWr9EMcSIrCoQ8ecnbc7fgOBjnLAL5T0WEvxyWjA-1pyY7O2YAUkMHhBL7A6gerDfiPGvr9IaLwVb_X9osEr0huovWbuTEyI9FWTQSRlLk3DRemddIgizTXdiVM32FTSbyvU7HpJz1L6UFuWPKrHLkvYXrIhGYFWITmvwbgAeLxuxbN0PEbcvDyaSol7IAuwH4jLnqLrFwNiQOyHeOXVEgGhnu4uhw0VSAO1RiUzW2HoClHF7s4xUBwiV%26flowName%3DGeneralOAuthFlow%26hl%3Den%26as%3DS-636249750%253A1765316704781958%26client_id%3D947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com%26requestPath%3D%252Fsignin%252Foauth%252Fconsent%23&app_domain=http%3A%2F%2F127.0.0.1%3A49354&rart=ANgoxccha1Z0OMQinNG2yWgBz3TdLntfNEb93zJaeD_m8LCF8bwb-O3rGx0Kk38qz70aUdfyhXNf-PdeSm-f0UGAhX5zexwpiR247gvWp9SRz2jAmCrDgUY
  4. https://accounts.google.com/v3/signin/challenge/pwd?TL=AHE1sGXSrbPs5XK7qczFSN_3A5wSNlzgtTkJMiCx5FYvNHd0P567twHphfOuLcqL&access_type=offline&app_domain=http%3A%2F%2F127.0.0.1%3A49354&checkConnection=youtube%3A440&checkedDomains=youtube&cid=3&client_id=947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com&continue=https%3A%2F%2Faccounts.google.com%2Fsignin%2Foauth%2Fconsent%3Fauthuser%3Dunknown%26part%3DAJi8hAPFdT1NN0wXnYLIoXlSLz6dLMkWdrkCm3uH1A8l-mmugkmKezyBfgzsiE8zXCydLvdBxHwla-yXeNM_16MrjupxLKl38c2z77W_0oVdqPHq9Q02PYByV9knOOeXWe2nuvkFNKI7xo_O8apEopOhMOQWN-5N6H9mw4asXLjhMQ8-_aP822iAH33-yBwmToE39ZHBtqBN603MMaSuWr9EMcSIrCoQ8ecnbc7fgOBjnLAL5T0WEvxyWjA-1pyY7O2YAUkMHhBL7A6gerDfiPGvr9IaLwVb_X9osEr0huovWbuTEyI9FWTQSRlLk3DRemddIgizTXdiVM32FTSbyvU7HpJz1L6UFuWPKrHLkvYXrIhGYFWITmvwbgAeLxuxbN0PEbcvDyaSol7IAuwH4jLnqLrFwNiQOyHeOXVEgGhnu4uhw0VSAO1RiUzW2HoClHF7s4xUBwiV%26flowName%3DGeneralOAuthFlow%26hl%3Den%26as%3DS-636249750%253A1765316704781958%26client_id%3D947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com%26requestPath%3D%252Fsignin%252Foauth%252Fconsent%23&dsh=S-636249750%3A1765316704781958&flowName=GeneralOAuthFlow&hl=en&o2v=1&opparams=%253Fhl%253Den&prompt=consent&pstMsg=1&rart=ANgoxccha1Z0OMQinNG2yWgBz3TdLntfNEb93zJaeD_m8LCF8bwb-O3rGx0Kk38qz70aUdfyhXNf-PdeSm-f0UGAhX5zexwpiR247gvWp9SRz2jAmCrDgUY&redirect_uri=http%3A%2F%2F127.0.0.1%3A49354&response_type=code&scope=https%3A%2F%2Fwww.googleapis.com%2Fauth%2Fflexible-api&service=lso&state=DlZ5NRaWdsqHUiS21f2V
  5. https://accounts.google.com/CheckCookie?continue=https://accounts.google.com/signin/oauth/consent?authuser%3Dunknown%26part%3DAJi8hAPFdT1NN0wXnYLIoXlSLz6dLMkWdrkCm3uH1A8l-mmugkmKezyBfgzsiE8zXCydLvdBxHwla-yXeNM_16MrjupxLKl38c2z77W_0oVdqPHq9Q02PYByV9knOOeXWe2nuvkFNKI7xo_O8apEopOhMOQWN-5N6H9mw4asXLjhMQ8-_aP822iAH33-yBwmToE39ZHBtqBN603MMaSuWr9EMcSIrCoQ8ecnbc7fgOBjnLAL5T0WEvxyWjA-1pyY7O2YAUkMHhBL7A6gerDfiPGvr9IaLwVb_X9osEr0huovWbuTEyI9FWTQSRlLk3DRemddIgizTXdiVM32FTSbyvU7HpJz1L6UFuWPKrHLkvYXrIhGYFWITmvwbgAeLxuxbN0PEbcvDyaSol7IAuwH4jLnqLrFwNiQOyHeOXVEgGhnu4uhw0VSAO1RiUzW2HoClHF7s4xUBwiV%26flowName%3DGeneralOAuthFlow%26hl%3Den%26as%3DS-636249750:1765316704781958%26client_id%3D947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com%26requestPath%3D/signin/oauth/consent%26rapt%3DAEjHL4PUyETMhvvqvzkP6ZXHANx1UthuIWKOm0hvLuoE5Okxt8sqmdhw4HKfDOUXG49-3NEexg5Z__xCkT3si7Eu1PDQGtkbx4wy8_yaWQCTY2l8gNb5zEo%23&service=lso&hl=en&checkedDomains=youtube&checkConnection=youtube:440&pstMsg=1&rart=ANgoxccha1Z0OMQinNG2yWgBz3TdLntfNEb93zJaeD_m8LCF8bwb-O3rGx0Kk38qz70aUdfyhXNf-PdeSm-f0UGAhX5zexwpiR247gvWp9SRz2jAmCrDgUY&flowName=GeneralOAuthFlow&client_id=947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com&redirect_uri=http://127.0.0.1:49354&scope=https://www.googleapis.com/auth/flexible-api&o2v=1&chtml=LoginDoneHtml&gidl=EgIIAA
  6. https://accounts.google.com/signin/oauth/consent?authuser=0&part=AJi8hAPFdT1NN0wXnYLIoXlSLz6dLMkWdrkCm3uH1A8l-mmugkmKezyBfgzsiE8zXCydLvdBxHwla-yXeNM_16MrjupxLKl38c2z77W_0oVdqPHq9Q02PYByV9knOOeXWe2nuvkFNKI7xo_O8apEopOhMOQWN-5N6H9mw4asXLjhMQ8-_aP822iAH33-yBwmToE39ZHBtqBN603MMaSuWr9EMcSIrCoQ8ecnbc7fgOBjnLAL5T0WEvxyWjA-1pyY7O2YAUkMHhBL7A6gerDfiPGvr9IaLwVb_X9osEr0huovWbuTEyI9FWTQSRlLk3DRemddIgizTXdiVM32FTSbyvU7HpJz1L6UFuWPKrHLkvYXrIhGYFWITmvwbgAeLxuxbN0PEbcvDyaSol7IAuwH4jLnqLrFwNiQOyHeOXVEgGhnu4uhw0VSAO1RiUzW2HoClHF7s4xUBwiV&flowName=GeneralOAuthFlow&hl=en&as=S-636249750:1765316704781958&client_id=947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com&requestPath=/signin/oauth/consent&rapt=AEjHL4PUyETMhvvqvzkP6ZXHANx1UthuIWKOm0hvLuoE5Okxt8sqmdhw4HKfDOUXG49-3NEexg5Z__xCkT3si7Eu1PDQGtkbx4wy8_yaWQCTY2l8gNb5zEo#
  7. https://accounts.google.com/signin/oauth/consent?authuser=0&part=AJi8hAPFdT1NN0wXnYLIoXlSLz6dLMkWdrkCm3uH1A8l-mmugkmKezyBfgzsiE8zXCydLvdBxHwla-yXeNM_16MrjupxLKl38c2z77W_0oVdqPHq9Q02PYByV9knOOeXWe2nuvkFNKI7xo_O8apEopOhMOQWN-5N6H9mw4asXLjhMQ8-_aP822iAH33-yBwmToE39ZHBtqBN603MMaSuWr9EMcSIrCoQ8ecnbc7fgOBjnLAL5T0WEvxyWjA-1pyY7O2YAUkMHhBL7A6gerDfiPGvr9IaLwVb_X9osEr0huovWbuTEyI9FWTQSRlLk3DRemddIgizTXdiVM32FTSbyvU7HpJz1L6UFuWPKrHLkvYXrIhGYFWITmvwbgAeLxuxbN0PEbcvDyaSol7IAuwH4jLnqLrFwNiQOyHeOXVEgGhnu4uhw0VSAO1RiUzW2HoClHF7s4xUBwiV&flowName=GeneralOAuthFlow&hl=en&as=S-636249750:1765316704781958&client_id=947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com&requestPath=/signin/oauth/consent&rapt=AEjHL4PUyETMhvvqvzkP6ZXHANx1UthuIWKOm0hvLuoE5Okxt8sqmdhw4HKfDOUXG49-3NEexg5Z__xCkT3si7Eu1PDQGtkbx4wy8_yaWQCTY2l8gNb5zEo#
  8. https://accounts.google.com/signin/oauth/firstparty/nativeapp?authuser=0&part=AJi8hAPFdT1NN0wXnYLIoXlSLz6dLMkWdrkCm3uH1A8l-mmugkmKezyBfgzsiE8zXCydLvdBxHwla-yXeNM_16MrjupxLKl38c2z77W_0oVdqPHq9Q02PYByV9knOOeXWe2nuvkFNKI7xo_O8apEopOhMOQWN-5N6H9mw4asXLjhMQ8-_aP822iAH33-yBwmToE39ZHBtqBN603MMaSuWr9EMcSIrCoQ8ecnbc7fgOBjnLAL5T0WEvxyWjA-1pyY7O2YAUkMHhBL7A6gerDfiPGvr9IaLwVb_X9osEr0huovWbuTEyI9FWTQSRlLk3DRemddIgizTXdiVM32FTSbyvU7HpJz1L6UFuWPKrHLkvYXrIhGYFWITmvwbgAeLxuxbN0PEbcvDyaSol7IAuwH4jLnqLrFwNiQOyHeOXVEgGhnu4uhw0VSAO1RiUzW2HoClHF7s4xUBwiV&flowName=GeneralOAuthFlow&hl=en&as=S-636249750:1765316704781958&client_id=947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com&requestPath=/signin/oauth/consent&rapt=AEjHL4PUyETMhvvqvzkP6ZXHANx1UthuIWKOm0hvLuoE5Okxt8sqmdhw4HKfDOUXG49-3NEexg5Z__xCkT3si7Eu1PDQGtkbx4wy8_yaWQCTY2l8gNb5zEo
  9. http://127.0.0.1:49354/?state=DlZ5NRaWdsqHUiS21f2V&code=4/0ATX87lPypweMwdXMiCRQiFSHNUkw86nymXg8LV6gv0Tb5fB9gs5iHzJ0fKHicbKzcaMahg&scope=https://www.googleapis.com/auth/flexible-api

One of the biggest things to note is the client_id in the query string. This has a value of 947318989803-6bn6qk8qdgf4n4g3pfee6491hc0brc4i.apps.googleusercontent.com. If we Google that client_id the results possibly point at Google Drive?

https://support.google.com/drive/thread/125345329/can-t-login-googledrive-backup-and-sync-error-code-400-invalid-request-required-parameter-is-missing?hl=en https://www.reddit.com/r/gsuite/comments/1bl4zjo/cannot_sign_in_gdrive_desktop_app/

tags: #CTF #Challenges #Writeups #ILEAPP
