Memory Forensics - Windows Notepad Part 4
by ogmini
I spent a little time today attempting to recreate my work in Volatlity 3 using MemProcFS. Helpful to see gaps/differences or possibly to see if I’m using a tool incorrectly. Initially, I found the absence of the settings.dat and Helium registry files in Volatility 3 to be a little odd. I figured that they would show up in the handles or filescan plugin. It is possible that filescan would find them; but I was getting an error about charmap and haven’t had the chance to troubleshoot.

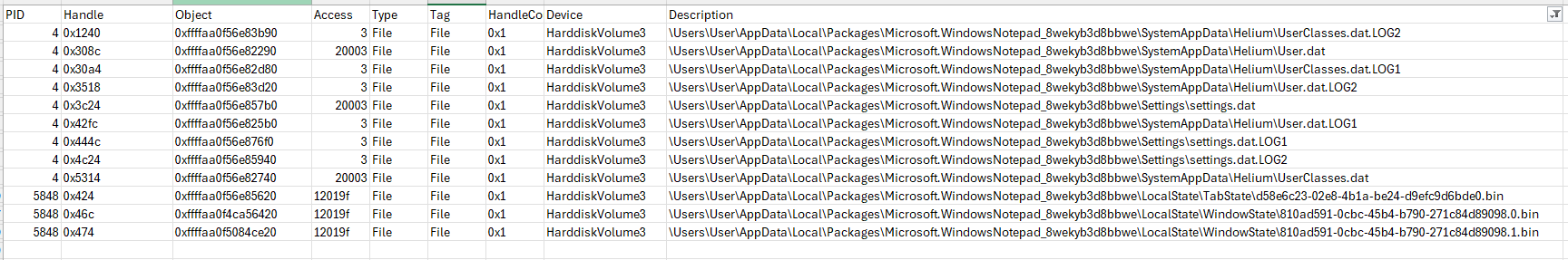

Cut over to MemProcFS and the forensic mode actually recovers the settings.dat and Helium registry files. I check the handles.csv file just to understand where/how it found them and find that the SYSTEM Process (PID 4) has handles for all of them. I promptly go back to Volatility 3 and just double check that I didn’t miss those handles under PID 4 and I did not.
I’m now left with two questions that maybe someone could provide some insight into:
- Am I doing something wrong in Volatility 3?
- Why the difference in behavior between Volatility 3 and MemProcFS?
Mark McKinnon kindly left a comment on yesterday’s post about using Autopsy with the MemProcFS plugin to automate. I could tie that with my existing WindowsNotepadParser to parse the state files, an existing plugin to parse the Helium Registry Files, and the in progress RECmd/Registry Explorer plugin for ApplicationSettingsContainer to read the settings.dat.
Just a reminder that from Part 1, neither Volatlity 3 or MemProcFS found the TabState file for the opened text file with no changes. No handle existed. We found in later posts that it is possible to recover it manually.
I still want to persist in writing a Volatility 3 plugin for the experience; but the above feels like it might be faster/easier for a first pass.
tags: #Volatility #Memory-Forensics #Windows-Notepad #MemProcFS
